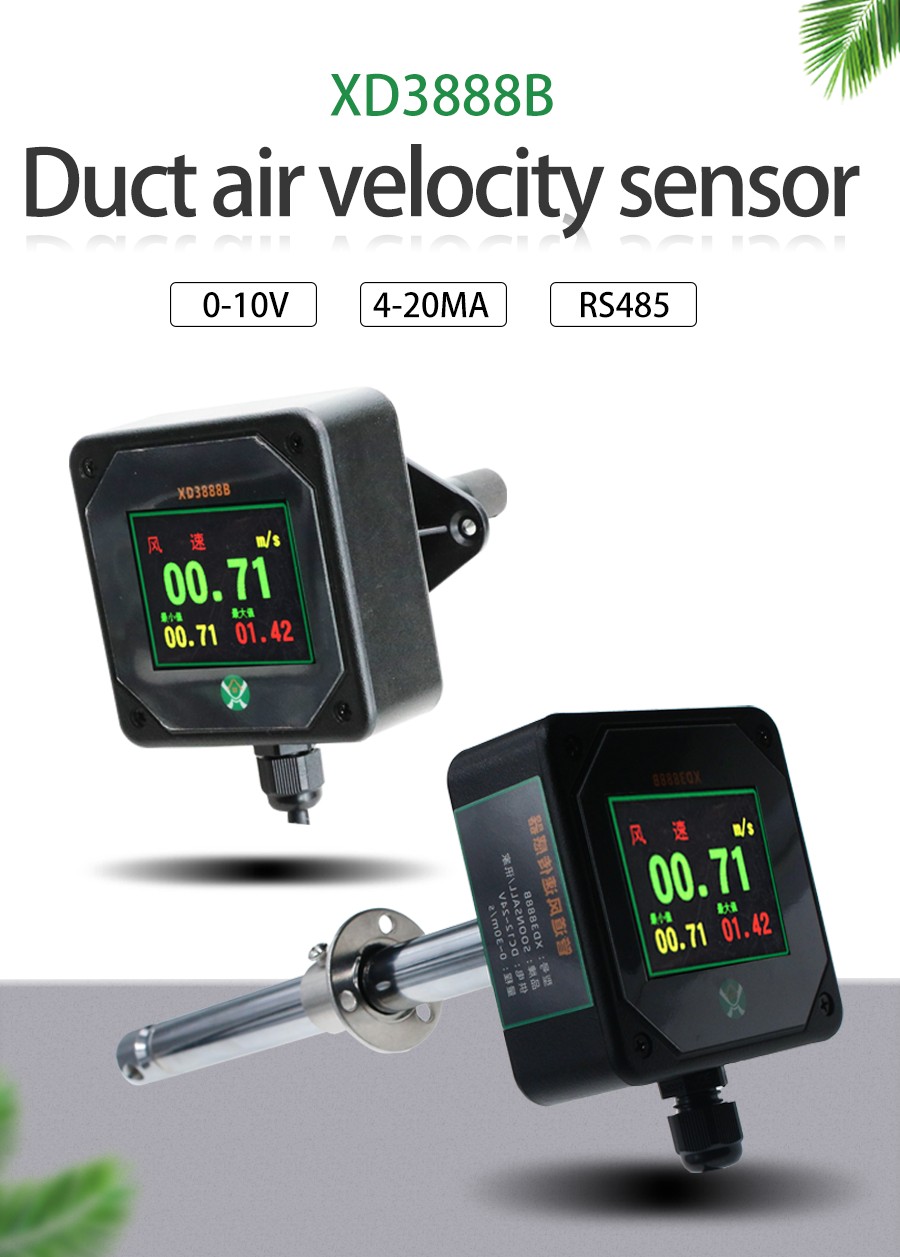

Technical Parameters
|
Technical parameter |
Parameter value |
|
Brand |
XUNCHIP |
|
Wind speed range |
0~30m/s |
|
Wind speed accuracy |
±3% |
|

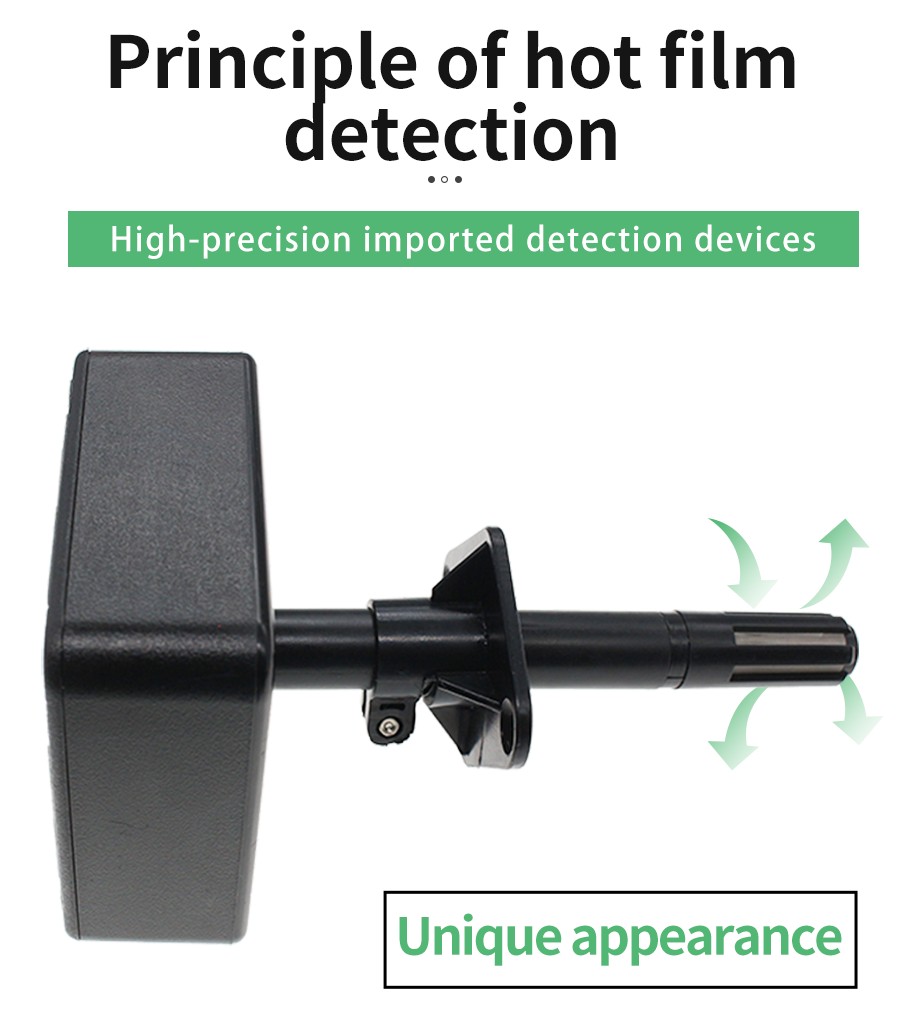

Induction principle |
Thermal film induction |
|
Interface |
RS485/4-20mA/DC0-5V/DC0-10V |
|
Power |
DC12~24V 1A |
|
Running temperature |
-30~80℃ |
|
Working humidity |
5%RH~90%RH |
Product Selection
Product DesignRS485,4-20mA,DC0-5V,DC0-10VMultiple output methods, the products are divided into the following models depending on the output method.
|
Product model |
output method |
|
XD3889B |
RS485总线 |
|
XD3889M |
4-20mA |
|
XD3889V5 |
DC0-5V |
|
XD3889V10 |
DC0-10V |

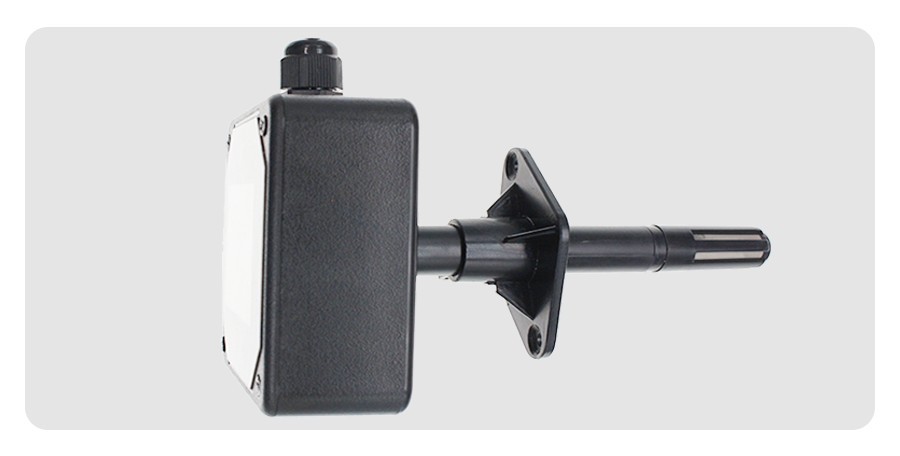

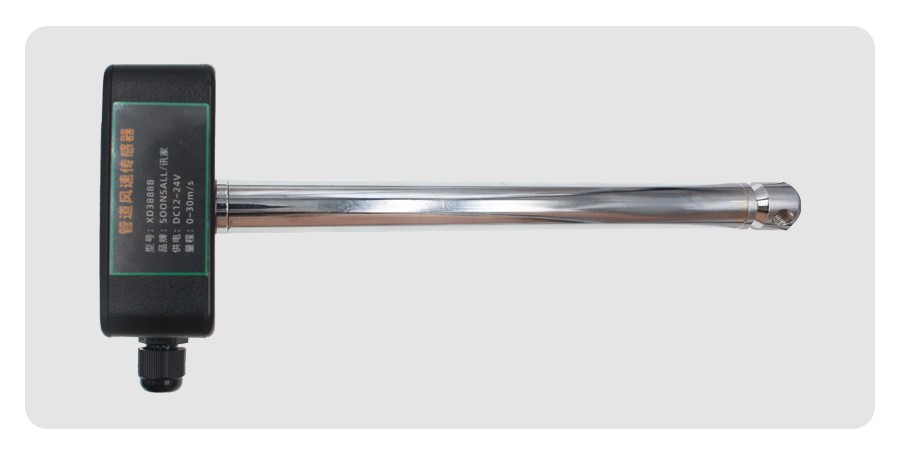

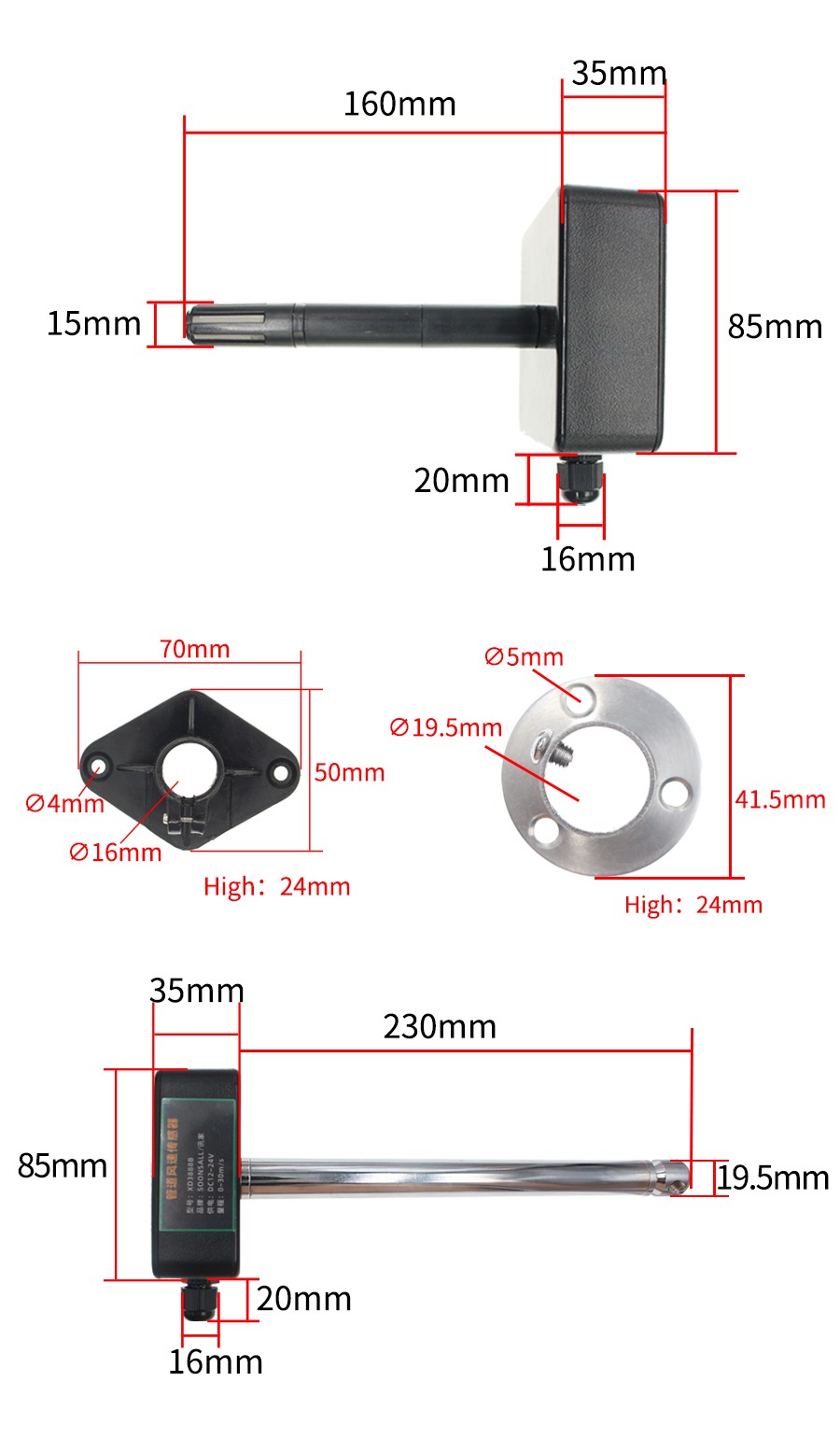

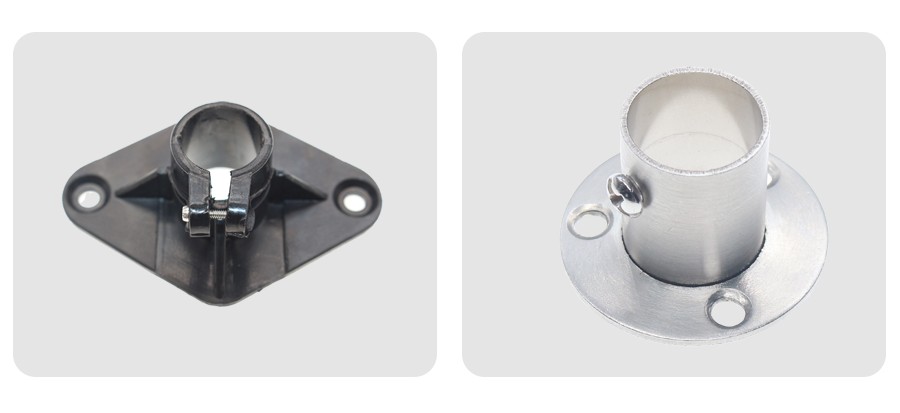

Product Size
software to test

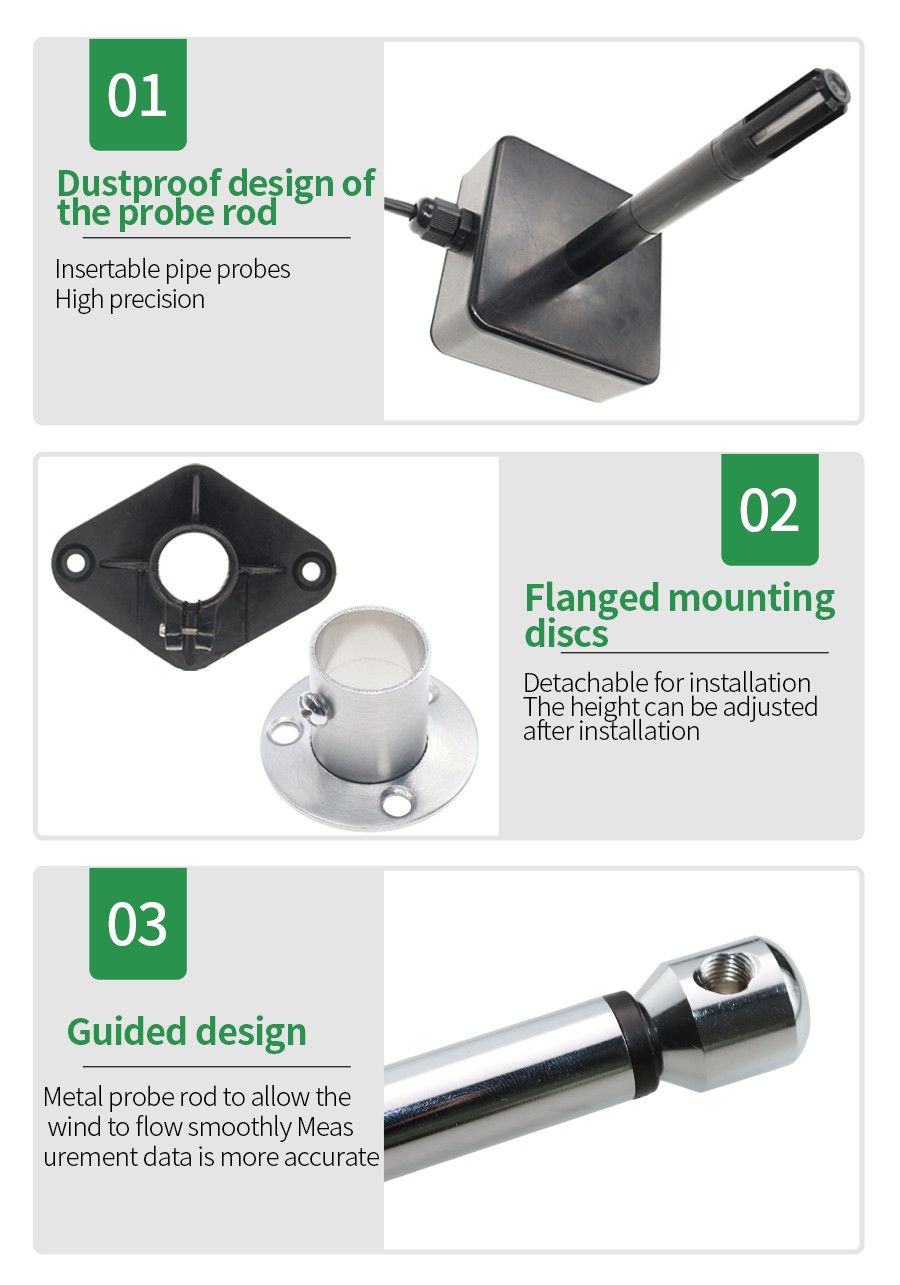

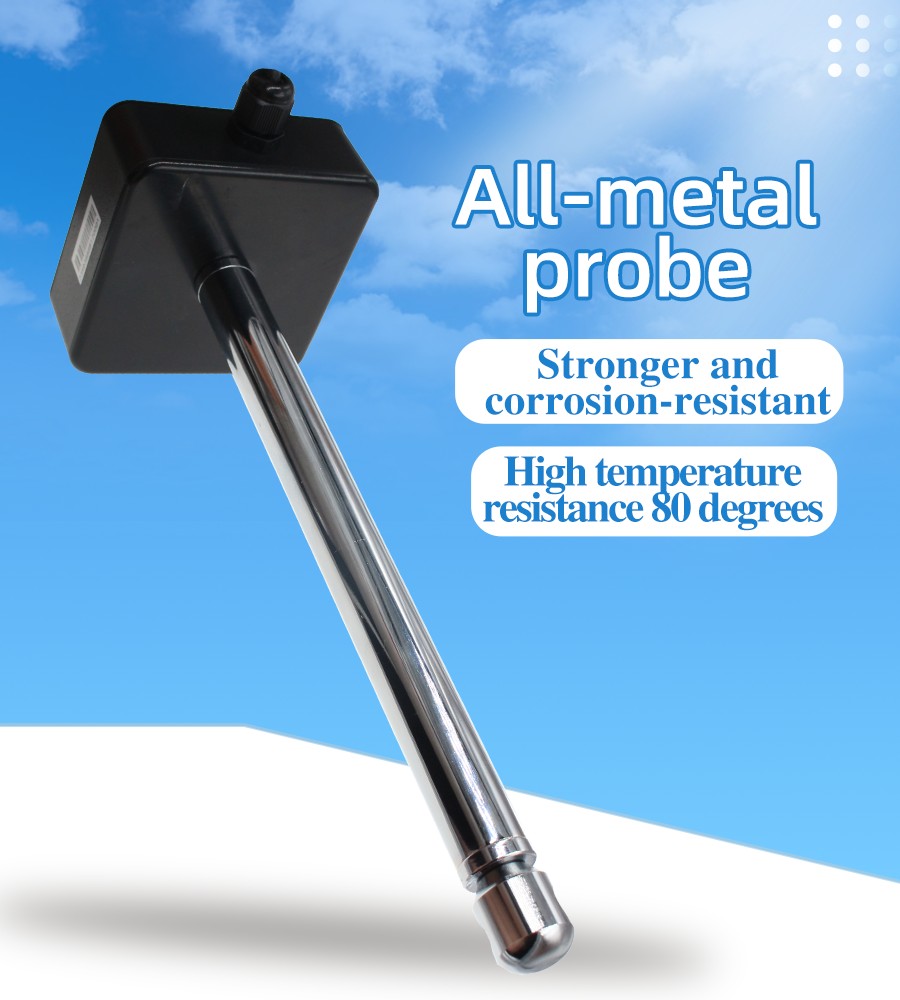

Why choose this product?
How to use software?
Why choose this product?

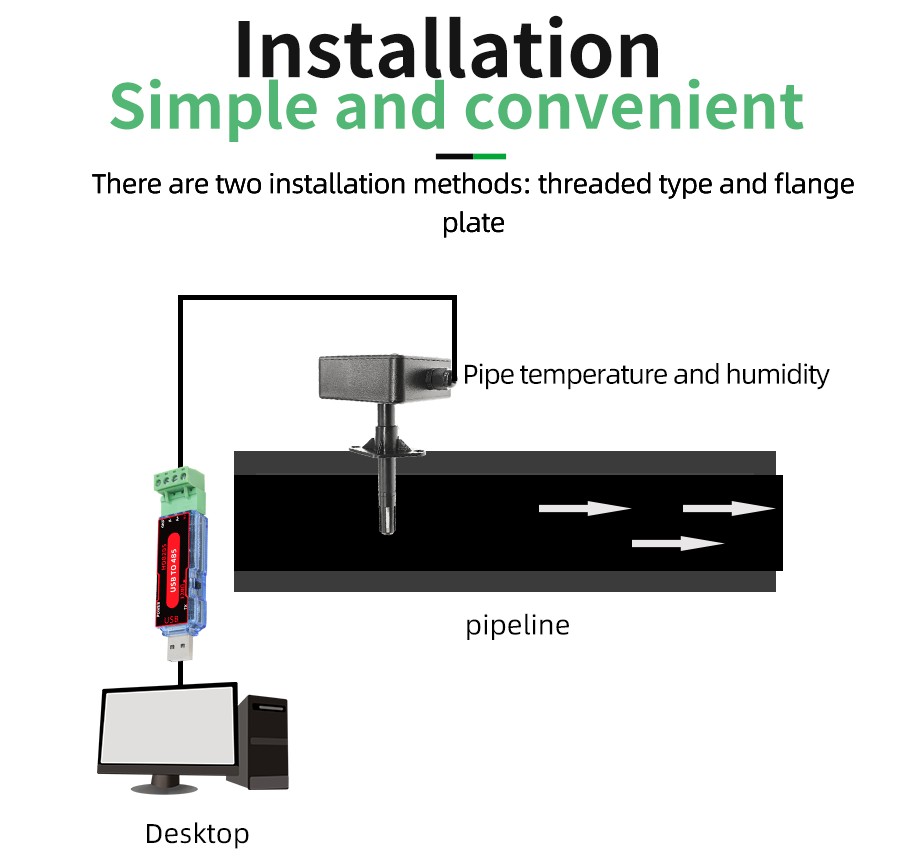

How to use?

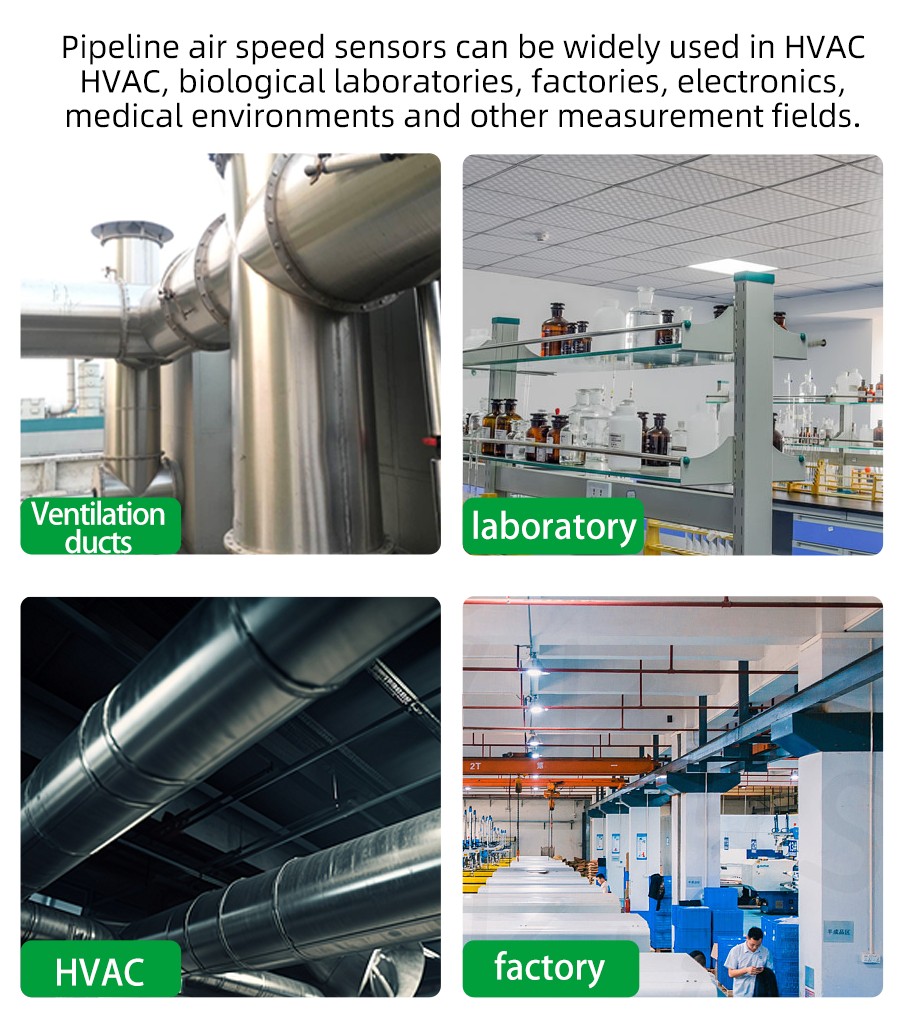

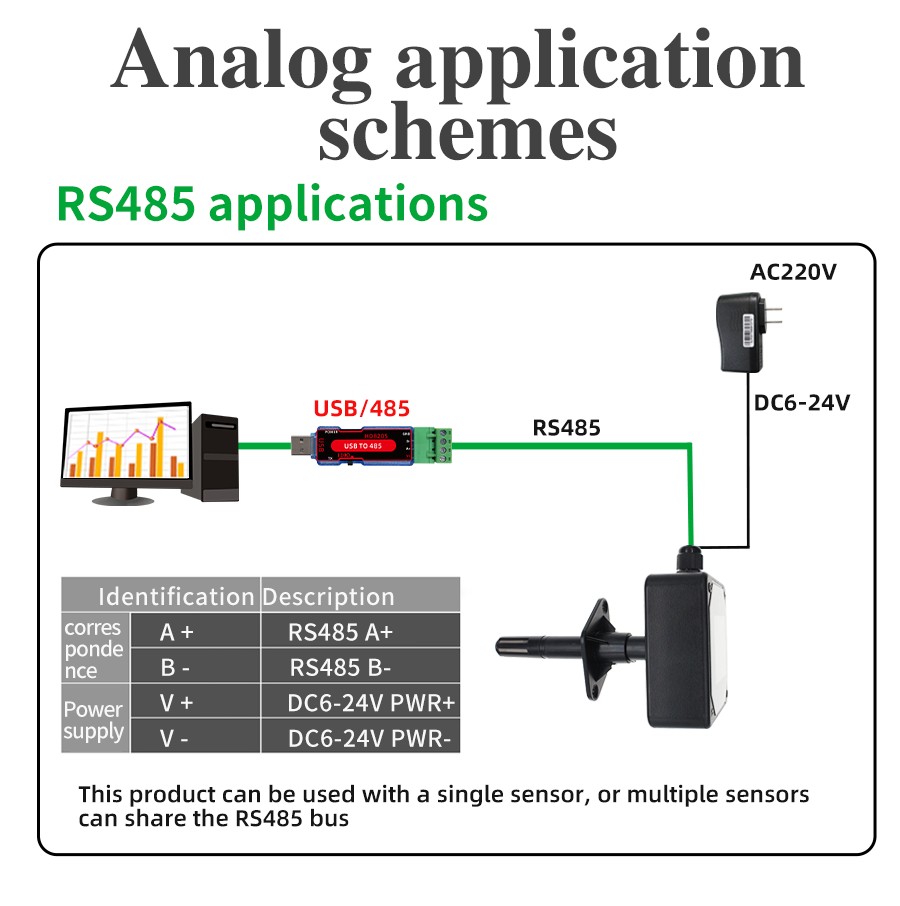

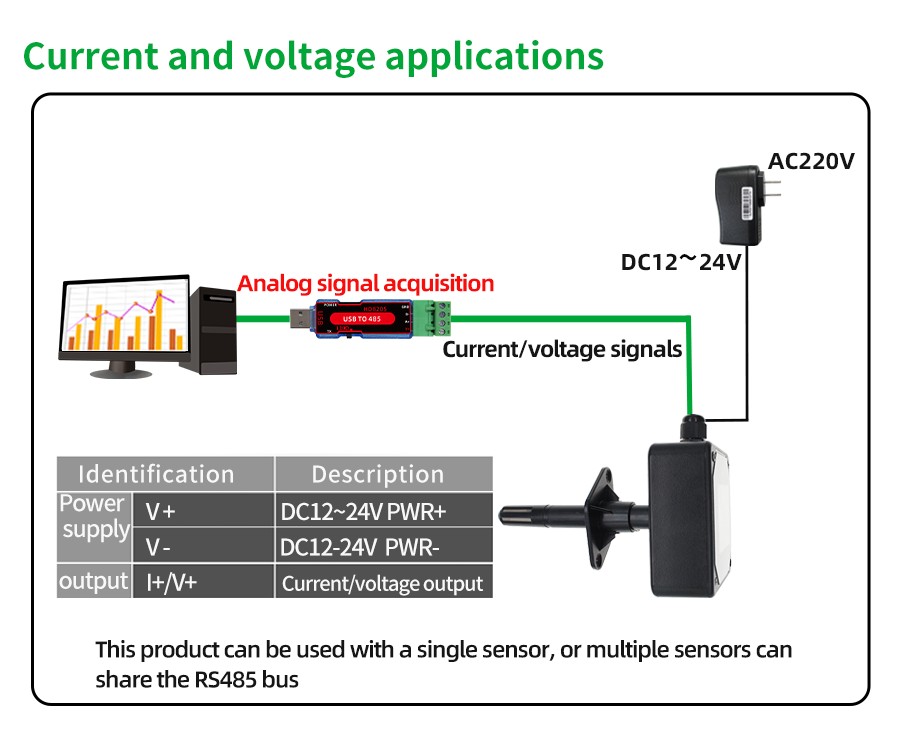

Application solution
Pictures
Communication Protocol
The product uses the RS485 MODBUS-RTU standard protocol format, and all operation or reply commands are in hexadecimal data. When the device leaves the factory, the default device address is 1, and the default baud rate is: for modules and non-recording instruments: 9600, 8, n, 1 (for the recorder series products, the default is: 115200, 8, n, 1).

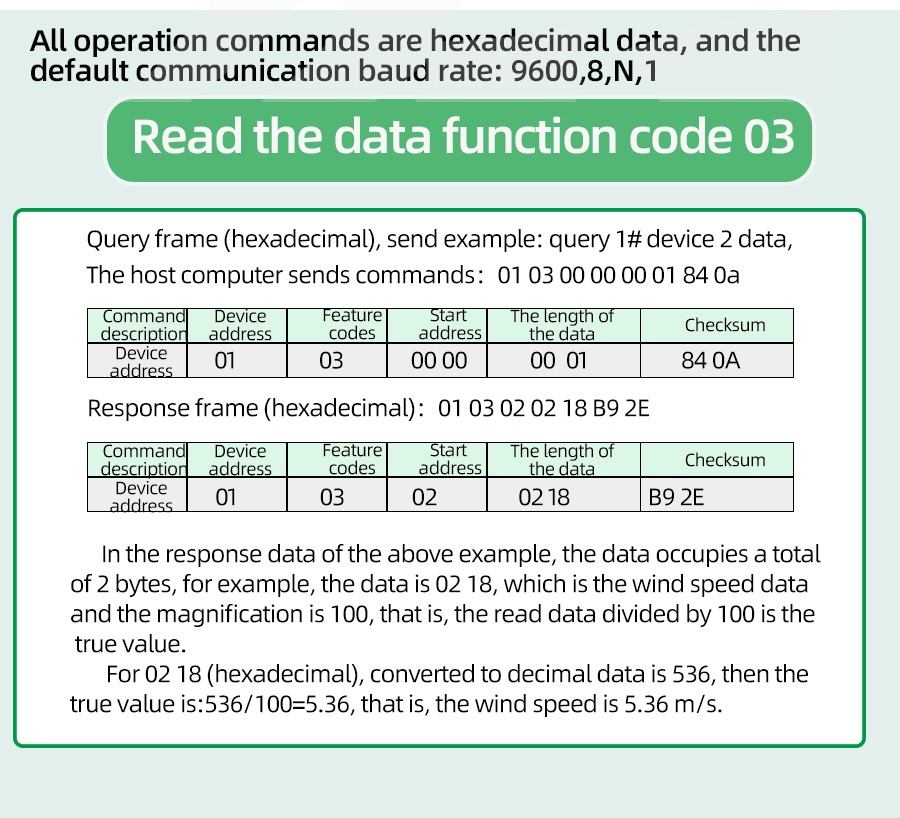

1. Read data (Function code 0x03)
The inquiry frame (in hexadecimal). Example of sending: To query 1 piece of data of device No. 1, the host computer sends the command: 01 03 00 00 00 01 84 0A .
|
Address |
Function code |
Starting address |
Data length |
Checksum |
|
01 |
03 |
00 00 |
00 01 |
84 0A |
For a correct inquiry frame, the device will respond with data: 01 03 02 02 18 B9 2E , and the response format is:
|
Address |
Function code |
Length |
Data 1 |
Checksum |
|
01 |
03 |
02 |
02 18 |
B9 2E |
Data description: The data in the command is in hexadecimal. Taking Data 1 as an example, 02 18 converted to decimal value is 536. Assuming the data magnification factor is 100, then the true value is 536/100 = 5.36, and the others can be deduced by analogy.

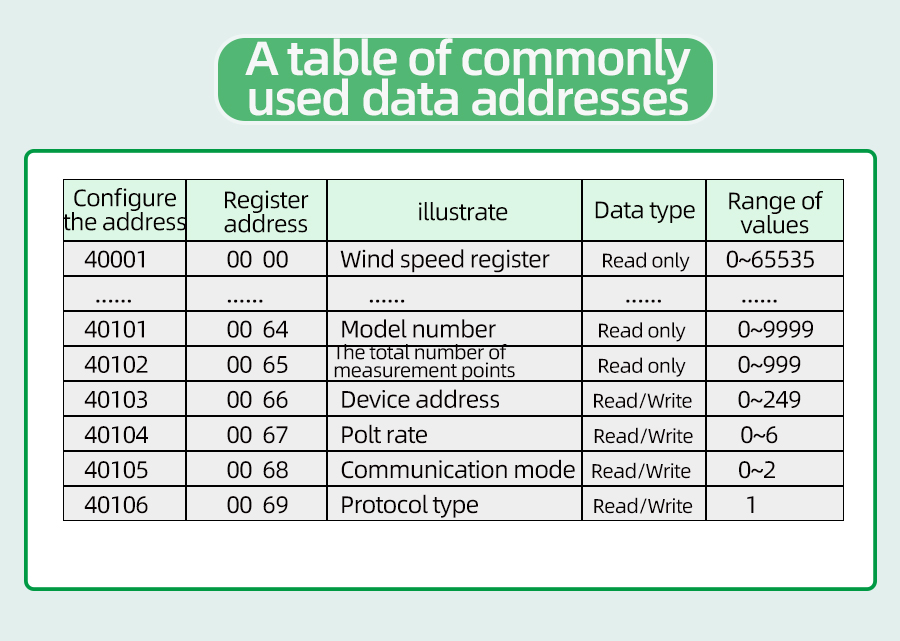

2. Common Data Address Table
|
Configuration Address |
Register Address |
Register Description |
Data Type |
Value Range |
|
40001 |
00 00 |
wind speed |
Read Only |
0~65535 |
|
40101 |
00 64 |
Model Code |
Read-only |
0~59999 |
|
40102 |
00 65 |
Total Number of Measuring Points |
Read-only |
1~1600 |
|
40103 |
00 66 |
Device Address |
Read/Write |
1~249 |
|
40104 |
00 67 |
Baud Rate |
Read/Write |
0~6 |
|
40105 |
00 68 |
Communication Mode |
Read/Write |
1 Query |
|
2 Active Upload |
40106 |
00 69 |
Protocol Type |
Read/Write |
|
1 MODBUS-RTU |
Others Unused |
For example, the range is 0~30m/s, the analog output is 4~20mA current signal, wind speed and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated current value. The list of commonly used values is as follows:
|
current(mA) |
wind speedValue (m/s) |
Calculation Process |
|
4 |
0.0 |
(30-0)*(4-4)÷(20-4)+0 |
|
5 |
1.9 |
(30-0)*(5-4)÷(20-4)+0 |
|
6 |
3.8 |
(30-0)*(6-4)÷(20-4)+0 |
|
7 |
5.6 |
(30-0)*(7-4)÷(20-4)+0 |
|
8 |
7.5 |
(30-0)*(8-4)÷(20-4)+0 |
|
9 |
9.4 |
(30-0)*(9-4)÷(20-4)+0 |
|
10 |
11.3 |
(30-0)*(10-4)÷(20-4)+0 |
|
11 |
13.1 |
(30-0)*(11-4)÷(20-4)+0 |
|
12 |
15.0 |
(30-0)*(12-4)÷(20-4)+0 |
|
13 |
16.9 |
(30-0)*(13-4)÷(20-4)+0 |
|
14 |
18.8 |
(30-0)*(14-4)÷(20-4)+0 |
|
15 |
20.6 |
(30-0)*(15-4)÷(20-4)+0 |
|
16 |
22.5 |
(30-0)*(16-4)÷(20-4)+0 |
|
17 |
24.4 |
(30-0)*(17-4)÷(20-4)+0 |
|
18 |
26.3 |
(30-0)*(18-4)÷(20-4)+0 |
|
19 |
28.1 |
(30-0)*(19-4)÷(20-4)+0 |
|
20 |
30.0 |
(30-0)*(20-4)÷(20-4)+0 |
As shown in the above formula, when measuring 8mA, current current is 11.5m/s。
For example, the range is 0~30m/s, the analog output is 0~5V DC0-5Vvoltage signal, wind speed and DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated DC0-5Vvoltage value. The list of commonly used values is as follows:
|
DC0-5Vvoltage(V) |
wind speedValue (m/s) |
Calculation Process |
|
0 |
0.0 |
(30-0)*(0-0)÷(5-0)+0 |
|
1 |
6.0 |
(30-0)*(1-0)÷(5-0)+0 |
|
2 |
12.0 |
(30-0)*(2-0)÷(5-0)+0 |
|
3 |
18.0 |
(30-0)*(3-0)÷(5-0)+0 |
|
4 |
24.0 |
(30-0)*(4-0)÷(5-0)+0 |
|
5 |
30.0 |
(30-0)*(5-0)÷(5-0)+0 |
As shown in the above formula, when measuring 2.5V, current DC0-5Vvoltage is 15m/s。
For example, the range is 0~30m/s, the analog output is 0~10V DC0-10Vvoltage signal, wind speed and DC0-10Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is DC0-10Vvoltage output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated DC0-10Vvoltage value. The list of commonly used values is as follows:
|
DC0-10Vvoltage(V) |
wind speedValue (m/s) |
Calculation Process |
|
0 |
0.0 |
(30-0)*(0-0)÷(10-0)+0 |
|
1 |
3.0 |
(30-0)*(1-0)÷(10-0)+0 |
|
2 |
6.0 |
(30-0)*(2-0)÷(10-0)+0 |
|
3 |
9.0 |
(30-0)*(3-0)÷(10-0)+0 |
|
4 |
12.0 |
(30-0)*(4-0)÷(10-0)+0 |
|
5 |
15.0 |
(30-0)*(5-0)÷(10-0)+0 |
|
6 |
18.0 |
(30-0)*(6-0)÷(10-0)+0 |
|
7 |
21.0 |
(30-0)*(7-0)÷(10-0)+0 |
|
8 |
24.0 |
(30-0)*(8-0)÷(10-0)+0 |
|
9 |
27.0 |
(30-0)*(9-0)÷(10-0)+0 |
|
10 |
30.0 |
(30-0)*(10-0)÷(10-0)+0 |
As shown in the above formula, when measuring 5V, current DC0-10Vvoltage is 15m/s。
